Most mobile X-ray systems are dramatically overbuilt for bedside imaging. This guide explains the hidden “weight tax” of legacy systems and why the Micro-X Rover Plus delivers better clinical performance with a fraction of the weight.
Key Takeaways
- Traditional mobile X-ray systems weigh between 500–800 kg due to high-power rotating anode tubes.
- The Micro-X Rover Plus weighs 112 kg (247 lbs), reducing strain and improving maneuverability.
- Most bedside imaging requires less than 10 kW, making higher power systems inefficient.
- Carbon nanotube (CNT) technology eliminates moving parts and enables instant X-ray emission.
- A 10-year tube warranty significantly reduces total cost of ownership.

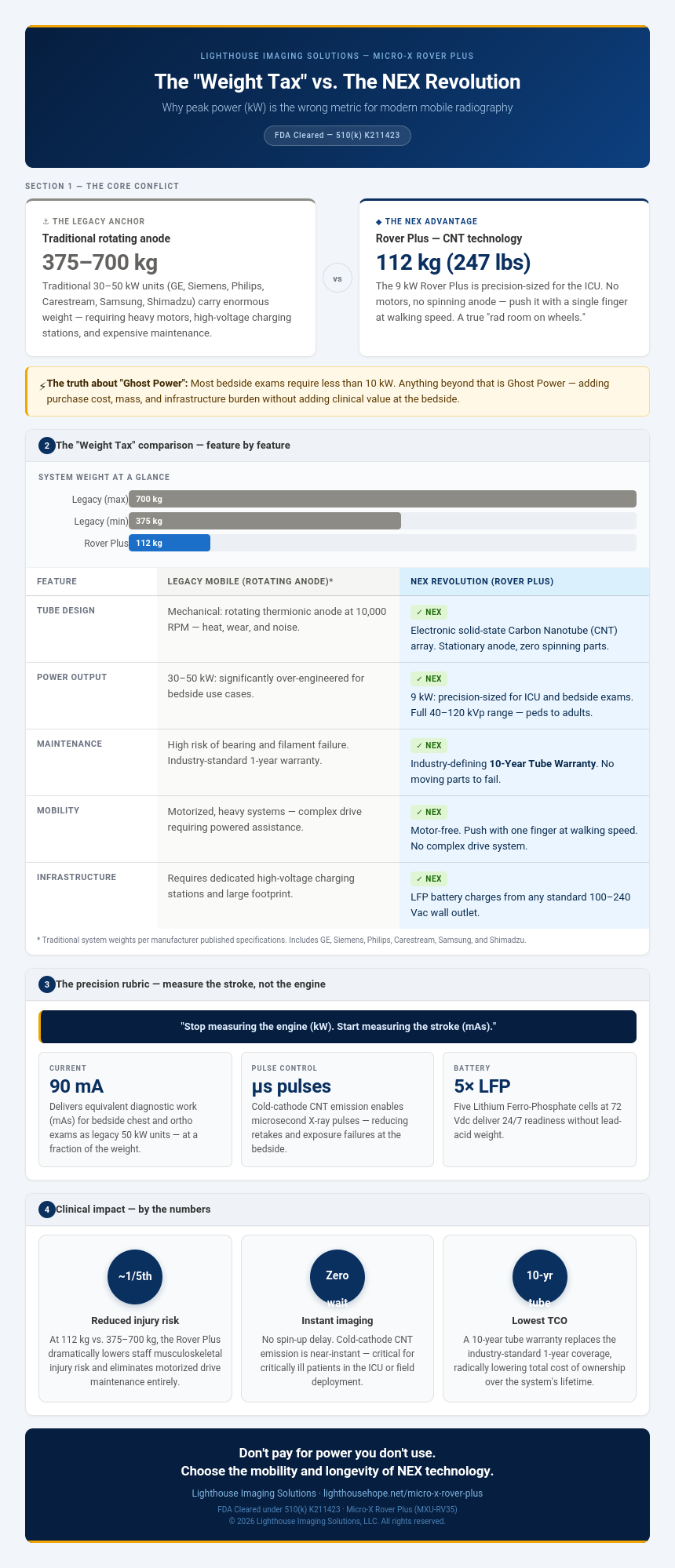

Infographic: The Weight Tax vs. NEX Technology
The "Weight Tax" vs. The NEX Revolution
|
⚓ The legacy anchor
Traditional rotating anode375–700 kg
Traditional 30–50 kW units (GE, Siemens, Philips, Carestream, Samsung, Shimadzu) carry enormous weight — requiring heavy motors, high-voltage charging stations, and expensive maintenance. |
vs
|
◆ The NEX advantage
Rover Plus — CNT technology112 kg (247 lbs)
The 9 kW Rover Plus is precision-sized for the ICU. No motors, no spinning anode — push it with a single finger at walking speed. A true "rad room on wheels." |
| Feature | Legacy Mobile (Rotating Anode)* | NEX Revolution (Rover Plus) |
|---|---|---|
| Tube design | Mechanical: rotating thermionic anode at 10,000 RPM — heat, wear, and noise. | ✓ NEX Electronic solid-state Carbon Nanotube (CNT) array. Stationary anode, zero spinning parts. |
| Power output | 30–50 kW: significantly over-engineered for bedside use cases. | ✓ NEX 9 kW: precision-sized for ICU and bedside exams. Full 40–120 kVp range — peds to adults. |
| Maintenance | High risk of bearing and filament failure. Industry-standard 1-year warranty. | ✓ NEX Industry-defining 10-Year Tube Warranty. No moving parts to fail. |
| Mobility | Motorized, heavy systems — complex drive requiring powered assistance. | ✓ NEX Motor-free. Push with one finger at walking speed. No complex drive system. |
| Infrastructure | Requires dedicated high-voltage charging stations and large footprint. | ✓ NEX LFP battery charges from any standard 100–240 Vac wall outlet. |
|
Current
90 mA
Delivers equivalent diagnostic work (mAs) for bedside chest and ortho exams as legacy 50 kW units — at a fraction of the weight. |
Pulse control
μs pulses
Cold-cathode CNT emission enables microsecond X-ray pulses — reducing retakes and exposure failures at the bedside. |
Battery
5× LFP
Five Lithium Ferro-Phosphate cells at 72 Vdc deliver 24/7 readiness without lead-acid weight. |
|
~1/5th
weight Reduced injury riskAt 112 kg vs. 375–700 kg, the Rover Plus dramatically lowers staff musculoskeletal injury risk and eliminates motorized drive maintenance entirely. |
Zero
wait Instant imagingNo spin-up delay. Cold-cathode CNT emission is near-instant — critical for critically ill patients in the ICU or field deployment. |
10-yr
tube Lowest TCOA 10-year tube warranty replaces the industry-standard 1-year coverage, radically lowering total cost of ownership over the system's lifetime. |
Full Breakdown of Mobile X-Ray System Differences
The Core Problem: The “Weight Tax”
Traditional mobile X-ray systems rely on rotating anode technology that requires large mechanical components, high voltage systems, and heavy batteries. These systems typically weigh between 500 and 800 kilograms.
In contrast, the Micro-X Rover Plus weighs only 112 kilograms because it uses carbon nanotube (CNT) technology, eliminating the need for spinning components and reducing system complexity.
Why Peak Power (kW) Is Misleading
Peak power ratings of 30–50 kW are often used to market mobile X-ray systems. However, most bedside imaging exams—such as chest and orthopedic studies—require less than 10 kW.
Excess power does not improve diagnostic outcomes. Instead, it increases system weight, cost, and maintenance requirements. This unused capacity is often referred to as “ghost power.”
Technology Comparison
- Legacy Systems: Rotating anode tubes with moving parts that generate heat, wear, and mechanical failure risk.
- Rover Plus: Solid-state CNT emission with no moving parts and instant activation.
- Legacy Systems: Require motorized drive systems due to excessive weight.
- Rover Plus: Lightweight and maneuverable without motors.
- Legacy Systems: Require specialized charging infrastructure.
- Rover Plus: Operates from standard wall outlets.
Clinical Impact
Reducing system weight improves workflow efficiency and lowers the risk of staff injury. Instant-on X-ray capability eliminates delays, which is critical for imaging unstable patients in intensive care settings.
Additionally, the Rover Plus includes a 10-year X-ray tube warranty, compared to the industry standard of approximately one year, significantly lowering long-term operating costs.
What the Weight Difference Means for Your System Selection
Understanding system weight is the first step. These resources take you from operational impact to procurement decision — at whatever stage you are in the evaluation process.
Micro-X Rover Plus: Full System Overview & Technical Specifications
Review complete specifications, clinical environment fit, workflow benefits, the full comparison table, and the procurement process for the Rover Plus mobile X-ray system.
View the Rover Plus Overview →Why a 112 kg System Is Possible
The Technology That Eliminates the Weight Problem: Nano Electronic X-Ray
The Rover Plus weighs 112 kg because it uses Carbon Nanotube emission instead of a rotating anode. No spinning disc. No oversized drive system. No heavy battery arrays engineered around a mechanical power requirement. This guide explains the physics and engineering behind the weight reduction.
Understand How CNT Eliminates Excess Weight →Full System Comparison
Rover Plus vs. Traditional Systems: Full Portable X-Ray Comparison
Weight is one dimension. This side-by-side comparison covers tube technology, motorized vs. motor-free mobility, charging infrastructure requirements, maintenance burden, and 10-year tube warranty differences — organized for procurement review.
See the Full System Comparison →See How the Rover Plus Fits Your Bedside Imaging Workflow
The weight advantage is documented. Now see how it applies to your specific clinical environment. Request technical specifications, pricing, or a pro forma invoice for your procurement process.
FDA Cleared under 510(k) K211423 | Distributor and international inquiries welcome.
